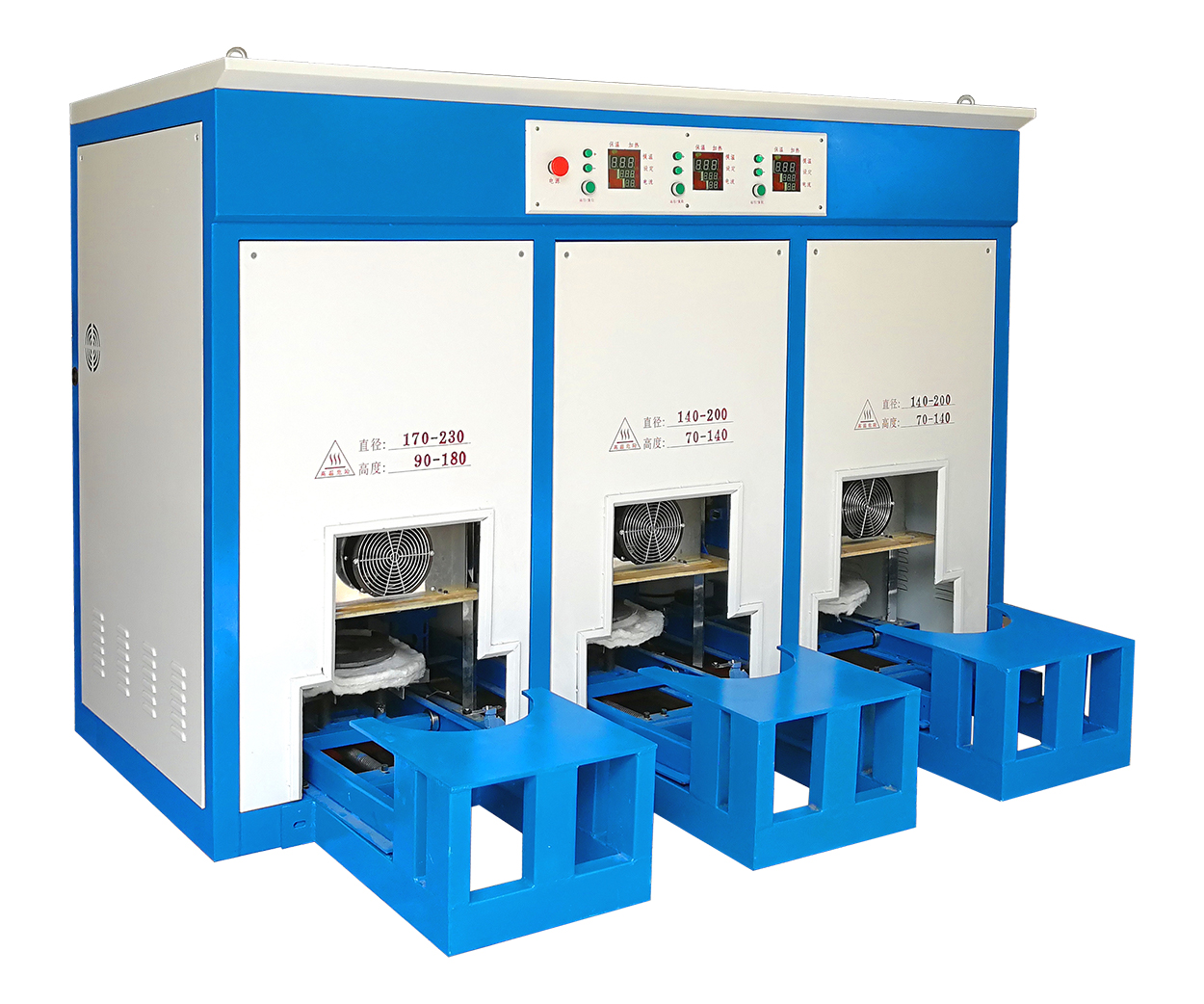

M series electromagnetic mould heating furnace

Taxonomy:M series electromagnetic mould heating furnace
Click times:
Date of release:2019/03/06
Specifications:
Type:
inquiry

introduce

M系列電磁模具加熱爐

Technical parameters:

Input voltage: three-phase four-wire 380V 10%

Input power: single burner 12KW

Heating mode: electromagnetic induction heating

Heating temperature: 430 ~ 500 degrees

Cooling mode: air cooling

Operation mode: each burner is independent of P L C semi-automatic control

Temperature control: P, L and C automatic isothermal and thermal insulation control

Protection mode: short - phase, anti - phase, over - current, short - circuit, over - temperature protection, time - out protection, etc

Display output: digital display of current temperature, working current,

Fault code; Indicator light shows working status.

Case material: spraying

Features:

1. M series mould furnace adopts the loading and unloading mode of mould movement.

2. Use screw to drive the mold in and out and coil up and down.

3. The status indicator is the on-board light-emitting diode.

Model specification:

model	The furnace capita	Customizable diameter	Customizable height	Heating time	Installation dimensions
J R - M 2 5 0 2	2	∮130～250	60～250	15～25	1400×1170×1500
J R - M 2 5 0 3	3	∮130～250	60～250	15～25	2050×1170×1500
J R - M 3 5 0 2	2	∮250～350	60～350	25～55	1600×1270×1600
J R - M 3 5 0 3	3	∮250～350	60～350	25～55	2450×1270×1600

Note: dimension unit in the table: mm; Time unit: minutes.

Models exceeding the specifications in the table can be customized.

In order to ensure the heating effect, it is suggested that the heated mold should be in the range of customized diameter - 60 m m, and the height should be more than half of the customized height.
