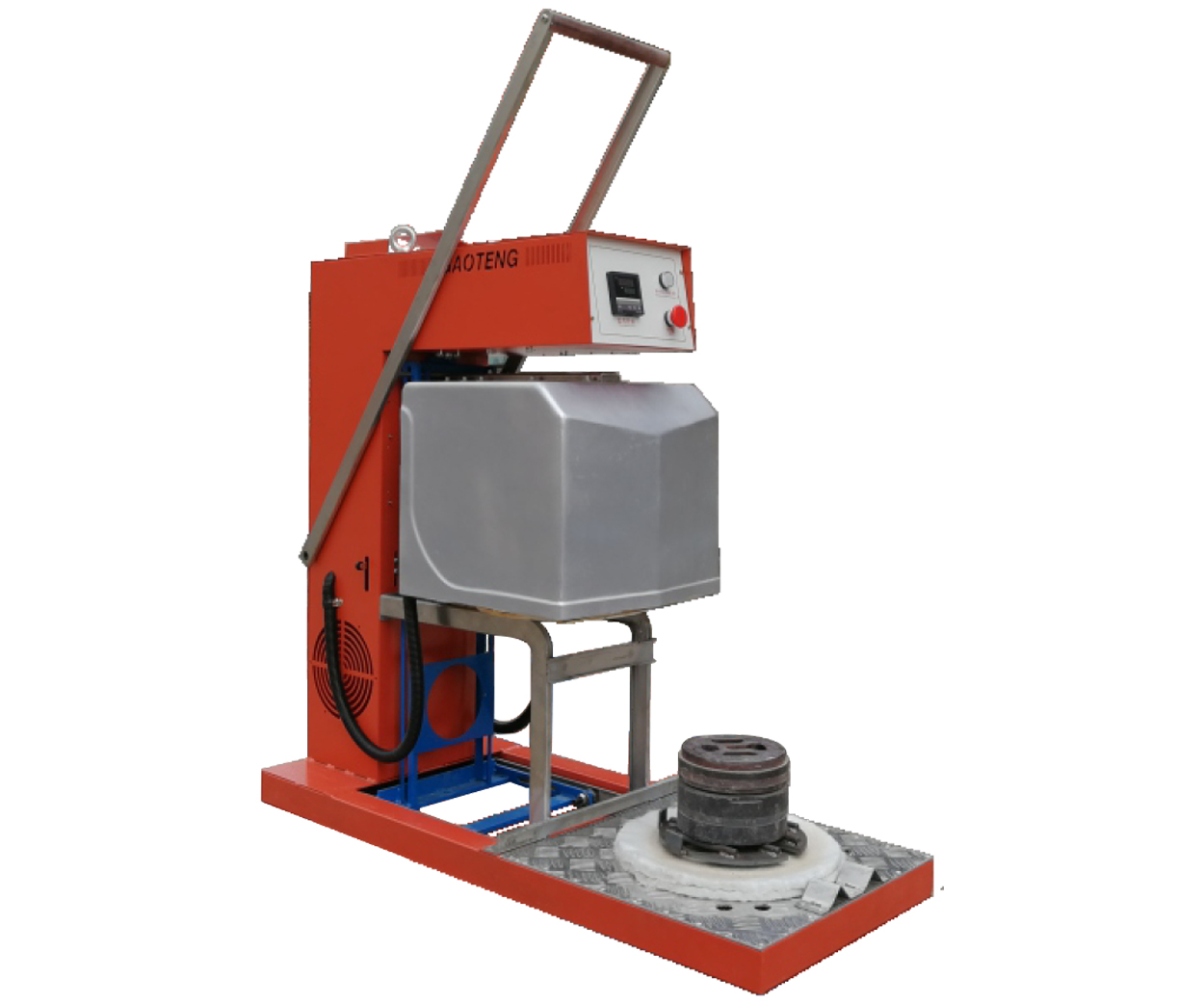

S series electromagnetic mould heating furnace
Taxonomy:S series electromagnetic mould heating furnace
- Click times:
- Date of release:2019/03/06
- Specifications:
- Type:
- inquiry
- introduce
Technical parameters:
Input voltage: three-phase four-wire 380V 10%
Input power: single burner 12KW
Heating mode: electromagnetic induction heating
Heating temperature: 430 ~ 500 degrees
Cooling mode: air cooling
Temperature control: double point temperature measurement, automatic heating and insulation control, over temperature protection
Display output: display the current temperature, and the indicator light shows the heating/holding state
Case material: high temperature spraying, stainless steel (reservation required)
Ultra-small footprint:
Stop state: 1200 * 500 * 1430 mm
Heating state: 1200 * 500 * 1130 mm
